Fluid Power Valve Technologies is a South African manufacturer of slurry knife gate valves for mining, mineral processing and heavy industry. Since 2006 we have built valves engineered for abrasive, high-wear service — supplied with shorter lead times and at more competitive prices than imported equivalents. Every valve we manufacture carries the “ACE” casting mark, identifying it as a Fluid Power Valve Technologies valve.

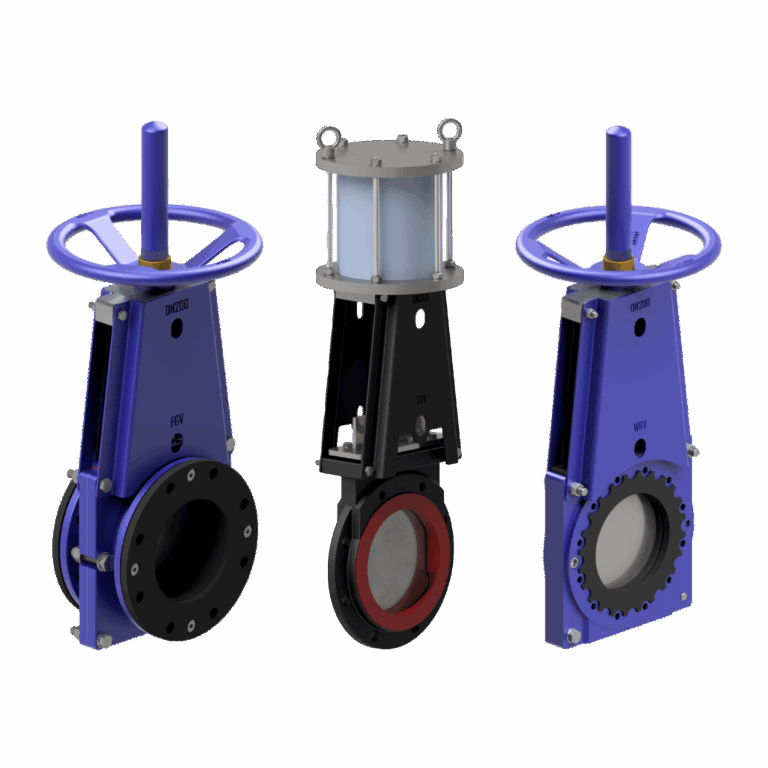

We proudly manufacture Clarkson-type Knife Gate Valves in both Wafer (WGV/KGD) and Flanged (FGV/KGA) configurations — the Wafer range from DN50mm to DN700mm and the Flanged range from DN80mm to DN750mm. Interchangeable sleeves and parts across the range keep maintenance simple and give you flexibility on site. For aggressive slurries, our own in-house designed Polyurethane-lined Knife Gate Valve (SGV) is available from DN50mm to DN750mm and is compatible with ANSI, BS, SABS and BS10 Table 1 drilling standards.
Fluid Power Valve Technologies is your trusted partner for every valve requirement, combining precision engineering with reliable performance and responsive support. We work closely with our partners to reach customers worldwide, and we offer customisation — including client logos, colours and bespoke specifications — so each valve fits both your system and your brand.
Polyurethane Knife Gate Valve — our own in-house OEM design
A one-piece body with a high-performance Polyline-Urethane lining, built for aggressive slurries with excellent abrasion and hydrolysis resistance in wet and dry service. The smooth, cavity-free bore resists slurry build-up and reduces head loss.
Sizes
DN50mm to DN750mm (drilled & tapped to BS, ANSI, SABS, BS10 Table 1)
Body
Epoxy-coated cast iron (BS1452 / ASTM A126 Class B / ASTM A48)
Lining
Polyline-Urethane
Blade
304 / 316 / SAF 2205 Duplex stainless steel
Spindle / nut
304 stainless spindle, LG2 bronze bushing nut, SG iron handwheel
Pressure
304/316 gate: 10 bar (DN50mm–DN400mm), 6.2 bar (DN450mm–DN750mm).
Duplex 2205: 10 bar (DN50mm–DN600mm), 6 bar (DN750mm)
Actuation
Handwheel · Chainwheel · Pneumatic · Hydraulic · Gearbox · Electric
Options: V-notch flow control (DN50mm–DN300mm), spindle protection tube & blade-protection side plates, PVC bellows dust covers, proximity switches and pneumatic solenoid instrumentation. Leak- and pressure-tested to ISO 9001:2015.

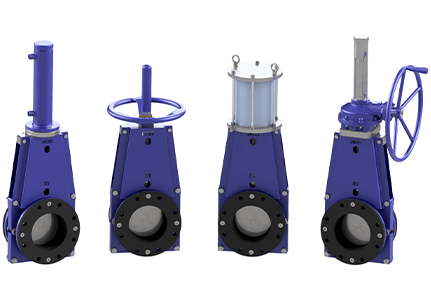

Flanged Knife Gate Valve — interchangeable with Clarkson KGA
A double-seat design with replaceable seat liners, no gland to maintain and no seat cavity where solids can collect. Bi-directional, bubble-tight shut-off; all spares interchangeable with the Clarkson KGA series.
Sizes
DN80mm to DN750mm (DN80mm–DN250mm drilled & tapped AS, ANSI, SABS, BS10 Table 1; DN300mm–DN400mm slotted ANSI 150#; larger on application)
Body
SG Iron Gr. 42 (SABS) or fabricated steel, externally epoxy-coated
Gate
304 / 316 stainless; 17-4 PH, Hastelloy and other materials available
Sleeves
Gum rubber (standard), nitrile, EPDM, butyl, Hypalon
Pressure
DN80mm–DN400mm to 7 bar (100 psi) with 316 blade; to 10 bar (150 psi) with 17-4 PH blade (to DN350mm)
Top works
Mild steel angle iron or A-frames; adapts to most actuators
Actuation
Handwheel · Chainwheel · Pneumatic · Hydraulic · Gearbox · Electric
Certified chemical and physical test reports available on request.

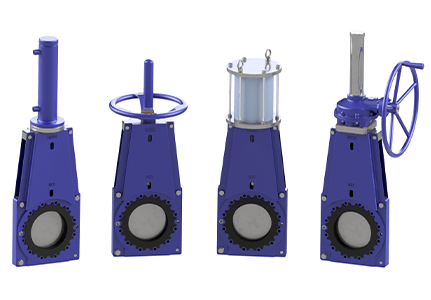

Wafer Knife Gate Valve — interchangeable with Clarkson KGD
A compact, double-seated wafer design with no metal parts in contact with the slurry and no clogged bonnet to impede flow. Bubble-tight and bi-directional; all spares interchangeable with the Clarkson KGD series.
Sizes
DN50mm to DN700mm (drilled & tapped DN50mm–DN450mm to ANSI 150#, BS, SABS; larger on application)
Body
Epoxy-coated cast iron, fabricated steel, WCB or CF8M stainless
Gate
304 / 316 / SAF 2205 Duplex stainless, optional coatings
Sleeves
Gum rubber (standard), EPDM, nitrile, butyl, Hypalon
Pressure
304/316 gate: 10 bar (DN50mm–DN400mm), 6.2 bar (DN450mm–DN600mm). Duplex 2205: 16–25 bar (DN50mm–DN400mm), 10 bar (DN450mm–DN600mm)
Top works
Angle iron, A-frames or side plates; adaptable yoke takes any actuator
Actuation
Handwheel · Chainwheel · Pneumatic · Hydraulic · Gearbox · Electric
Lubrication and flushing ports, lockout brackets. Leak- and pressure-tested to ISO 9001:2015.
Applications across the range: hard rock mining, mineral processing, coal, soda ash, mineral sand, kaolin, phosphate, alumina, pulp & paper, power generation, sand & gravel, cement, environmental and effluent.
